Guascor camshafts
Guascor gas engine camshaft list
Engine type |
Left camshaft |
Right Camsaft |
| FGLD180 | 1615181 | |
| FGLD240 | 1615311 | |
| FGLD360 | 1615080 | 1615090 |
| FGLD480 | 1616210 | 1616200 |
| 1615C20 | 1615C30 | |
| SFGLD180 | 1615181 | |
| SFGLD240 | 1615311 | |
| SFGLD360 | 1615080 | 1615090 |
| SFGLD480 | 1616210 | 1616200 |
| 1615C20 | 1615C30 | |
| 1615G10 | 1615G20 | |
| SFGLD560 | 1616210 | 1616200 |
| 1615C20 | 1615C30 | |
| 1615G10 | 1615G20 | |
| SFGM560 | 1915440 | 1915430 |

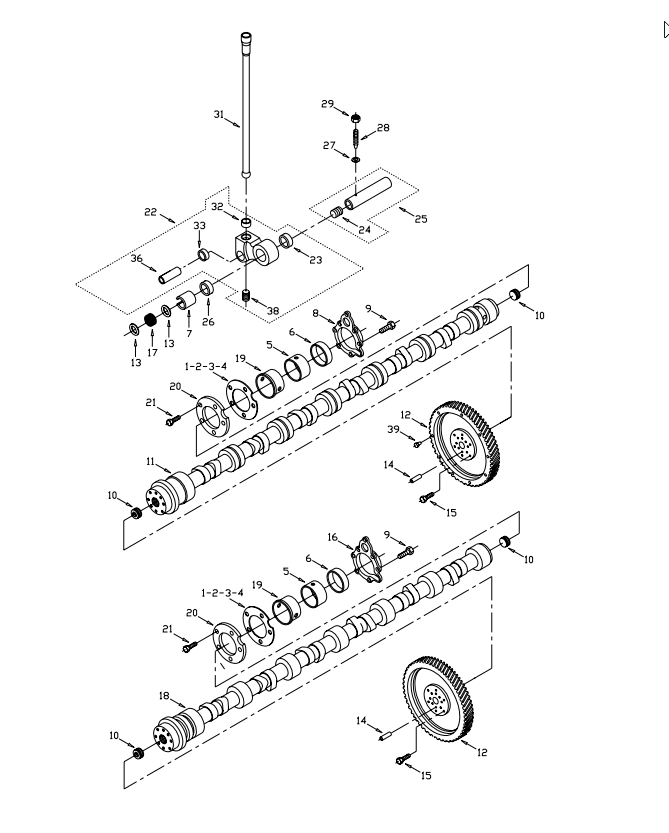

Guascor V engines camshaft parts list technical exploded drawing

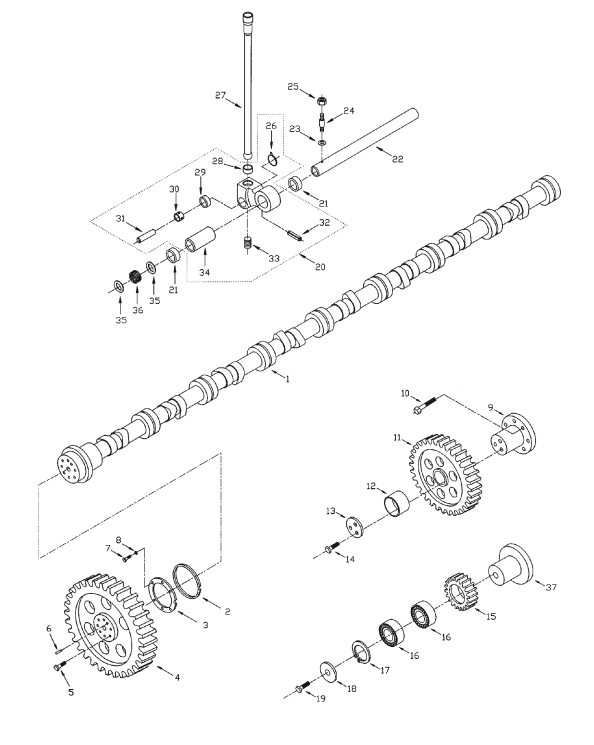

Guascor In-line engines camshaft parts list technical exploded drawing
