Azcue BT-MB-25D - Guascor part number 7628215

AZCUE self-priming screw pump type: BT-MB-25D monobloc, with a 0,37 kW motor at 1450 rpm, 220-380 V, 50 Hz.

Official Guascor part number is 76.28.215, but we are able to supply this pump directly from the manufacurer at more competitive price.

Packed weight: 20 kg

Dimensions: 50x30x30 cm

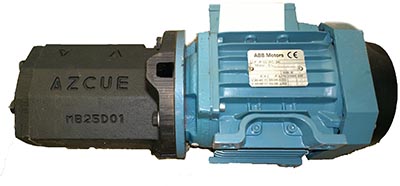

Azcue BT-MB-25D oil priming pump 7628215

Azcue BT-MB-25D oil priming pump



Different available versions:

Part number Specification / Description
BT-MB25D Electric motor 0.37 kW, 1450 rpm, 220/380 VAC, 50 Hz
BT-MB25D Electric motor 0.55 kW, 2900 rpm, 220/380 VAC, 50 Hz
BT-MB25D Electric motor 0.37 kW, 1450 rpm, 24 VDV



We can also offer you alternative self-priming pump with similar characteristics:

Internal Eccentric Gear Pump

Pump Type : CCSYM-K - 1"(with Pressure Relief Valve on Cover)
Liquid Name : Lube Oil
Capacity : 1.5 - 2 m3/h
Discharge Pressure : 5 Bar
NPSH / Vacuum : (flooded suction)
Operating Temperature: 96 oC
Acidity Level (pH) : -
Density : -
Viscosity : 75 cSt
Casing Cast. Material : GG 25 Cast Iron
Gears Cast. Material : GGG 50 Cast Iron
Shaft Material : Heat Treated Steel
Bearing Material : Bronze + Ball Bearing
Sealing System : Mechanical Seal (local made)
Motor Information : 1 HP - 0.75 kW @ 1450 rpm (220V - 50Hz, 3 Phase)
Pump Speed / Coupling : 1450 rpm (Long-Coupled Directly to Motor)
Suction / Discharge : 1" / 1" (Threaded) at 180o Angular Position
