76.56.044 Explosion Relief Valve

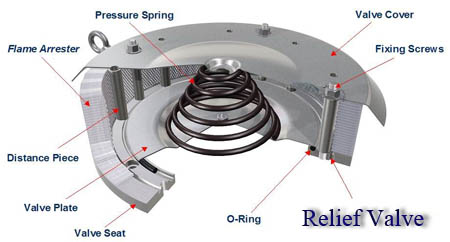

76.56.044 Explosion Relief Valve 76.56.044 Explosion Relief Valve Exploded View

Reliable explosion protection without plant downtime

  • Reliable flameless pressure relief
  • No direct shut-down of the system
  • Maintenance-free and operational for many years

Dangerous explosions are possible at any time in intake and exhaust pipes of industrial gas-powered and dual-fuel engines as well as downstream piping systems. EVT and EVM relief valves provide maximum protection for the operators, the engine and the equipment components.

Technical data

Show everything

Diameter -
EVT 98 to 266 mm (3.8 to 10.4 inches)
EVM 320 to 735 mm (12.6 to 28.9 inches)
Geometric venting cross-section -
EVT 59.4 to 499 cm2 (9.2 to 77.3 sq in)
EVM 732 to 3905 cm2 (113.4 to 605.2 sq in)

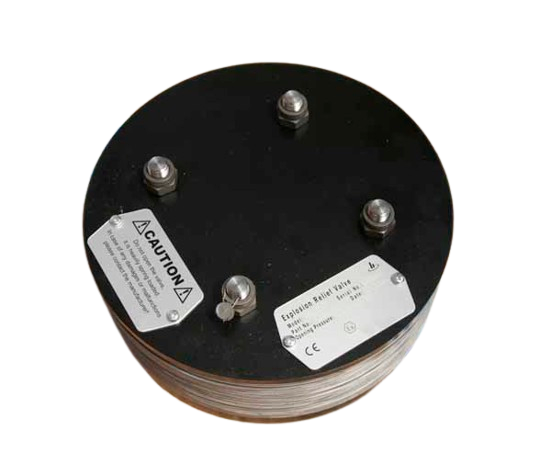

76.56.044 Explosion Relief Valve

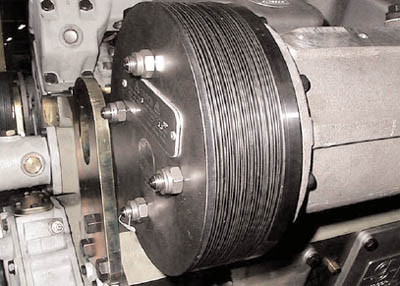

7656044 explosion relief valve fitted on the manifold of Guascor engine
