Guascor piston - liner reference guide

Guascor piston - liner guide
Engine Piston Piston kit Casting no Ring set Liner set Liner O-ring set
HGMI560 1915065 1915560 160L12R011 1915280 1910550 1910091 1975620
HGMI240 1915067 1915580 n/a 1915100 1610310 1610031 1675970
SFGLD560 1915023 1915210 152L6R021 1915280 1910550 1910091 1975620
SFGLD480 1915054 1915300 152L4F021 1915100 1610310 1610031 1675970
SFGLD360 1915054 1915300 152L4F021 1915100 1610310 1610031 1675970
SFGLD240 1915054 1915300 152L4F021 1915100 1610310 1610031 1675970
SFGLD180 1915054 1915300 152L4F021 1915100 1610310 1610031 1675970
FGLD480 1915019 1915120 152L4F011 1915100 1610310 1610031 1675970
FGLD360 1915019 1915120 152L4F011 1915100 1610310 1610031 1675970
FGLD240 1915019 1915120 152L4F011 1915100 1610310 1610031 1675970
FGLD180 1915019 1915120 152L4F011 1915100 1610310 1610031 1675970

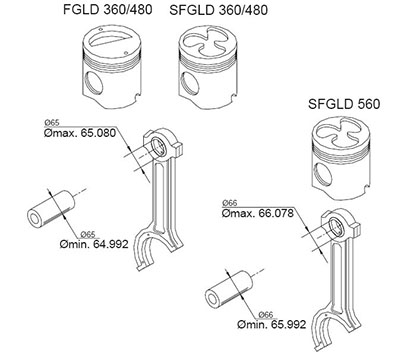

Guascor FGLD, SFGLD pistons Guascor FGLD, SFGLD piston rings
