Guascor Cylinder Head Gasket Set SFGLD series gas engines (1975B90)



19.75.B90 compromises all gaskets and parts necessary to change when you remove a cylinder head in accordance with the table below.



1975B90

Item Part number Quantity Description

1 1610041 1 O-ring oil hole
2 1610042 1 Aluminium bushing oil hole
3 1910273 1 Cylinder head gasket
4 1620165 1 Water pipe gasket
5 1920055 1 Gasket between head and water pipe
6 1940016 1 Exhaust joint
7 7042911 4 Washer
8 7212212 1 O-ring manifold water pipe
9 7212302 1 O-ring spark plug sleeve (upper)
10 7212306 1 O-ring spark plug sleeve (lower)
11 7212643 2 O-ring spark plug sleeve
12 7213685 2 O-ring between head and intake manifold
13 7216492 1 Rocker arm cover gasket
Part numbers indicated above are subject to change without notice!

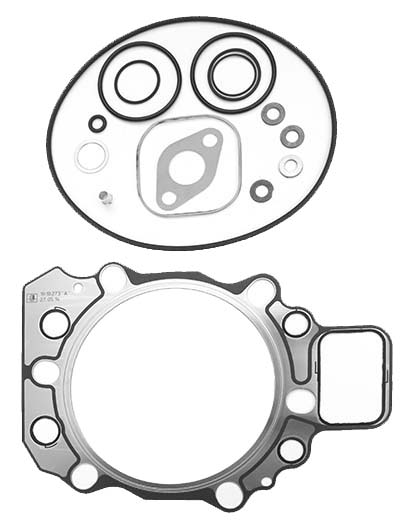

19.75.B90 Guascor HGM560 cylinder head gasket set

Guascor cylinder head gasket set for SFGLD series gas engiens

Guascor cylinder head gasket 1920055



1975B90 is soon available in OEM version. High quality workmanship, reliable alternative to the original kit.



1610494 cylinder head gasket set

Overhaul using 1610494 as part of 1975600 gasket set
