Guascor Cylinder Head Gasket Set FGLD series gas engines (1975040)



1975040 compromises all gaskets and parts necessary to change when you remove a cylinder head. in accordance with the table below. The kit is recommended and essential for overhaul and repair activity.

1975040

Item Part number Quantity Description

1 1610041 1 O-ring oil hole
2 1610042 1 Aluminium bushing oil hole
3 1610082 1 Cylinder head gasket
4 1620165 1 Water pipe gasket
5 1920055 1 Gasket between head and water pipe
6 1940016 1 Exhaust joint
7 7042911 4 Washer
8 7212212 1 O-ring manifold water pipe
9 7212302 1 O-ring spark plugs sleeve (upper)
10 7212306 1 O-ring spark plugs sleeve (lower)
11 7212643 2 O-ring spark plug sleeve
12 7213685 2 O-ring between head and intake manifold
13 7216492 1 Rocker arm cover gasket
Part numbers indicated above are subject to change without notice!

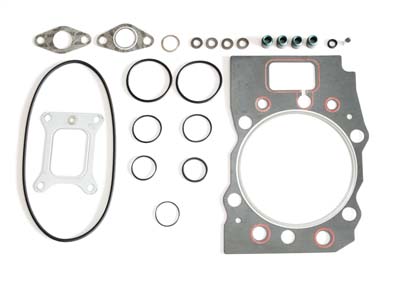

Guascor FGLD cylinder head gasket set

Guascor FGLD cylinder head gasket set

Guascor FGLD cylinder head gasket set



Guascor 1975040 cylinder head gasket set

1975040 is available in OEM version. High quality workmanship, reliable alternative to the original kit.

The OEM version does not involve the valve disk since it is not need to change.
